Cognito 4-Inch Performance Lift Kit with Fox PSRR 2.0 Shocks for 20-25 Silverado/Sierra 2500/3500 2WD/4WD

$5,147.48
SKU
110-P0896
Add to Wish List

Current lead time: In Stock

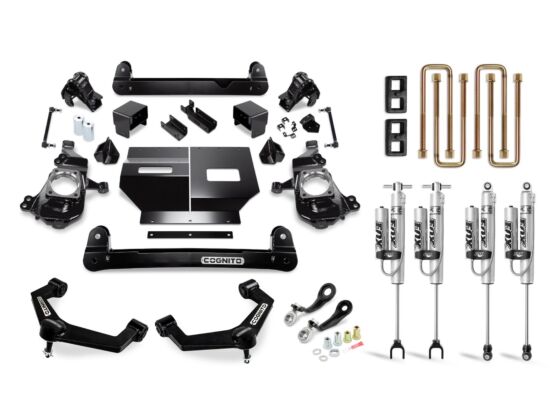

Each Kit Features:

  • Yields 4-inches of front lift
  • Cognito Block and U-Bolt Kit yields 2-inches of rear lift
  • SM Series Ball Joint Upper Control Arms
  • Patented Pitman and Idler Arm Support Kit
  • Fox 2.0 Performance Series Remote Reservoir Shocks
  • Maintains Adequate Droop Travel for Superior Ride Quality
  • 13-hour DIY install time
  • Made In USA

Details

We have bundled everything you need in a lift kit for your Silverado/Sierra 2500/3500 2WD/4WD with high quality Cognito components.

There is no guesswork. Cognito components are engineered, manufactured and assembled in the USA.

The Cognito Non-Torsion Bar Drop Front Lift kit is designed and engineered to offer superior ride quality and corrected CV joint angles

The Cognito Ball Joint SM Series Upper Control Arms add style, function and performance to your vehicle by correcting the Ball Joint angle for lifted and leveled applications and improving the allowable droop travel for a better ride quality.

The control arm kit features boxed sheet metal arms that are welded, and powder coated semi-gloss black. Pre-installed maintenance free ball joints and pivot bushings are included.

The Cognito Pitman and Idler Arm Support Kit: Pitman and Idler arms have been an inherent wear problem within the steering systems of Chevy and GMC trucks and SUVs for decades. The Cognito PISK (Pitman and Idler Arm Support Kit) replace the problem components that plague factory and aftermarket steering systems on several models and years of GM trucks and SUVs.

These improvements are accomplished through application of Cognito's innovative, patented design, by providing additional support to the vehicle's pitman and idler arms, which eliminate the forward and rearward movement of the center-link.

The Fox 2.0 Performance Series Remote Reservoir shocks contain the latest in shock technology to transform the performance of your truck. The Fox 2.0 Performance Series front shocks are rust resistant and have a metal impact extruded aluminum body to increase cooling capacity.

Eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. They're easy to install and provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The Cognito 2 inch Block and U-Bolt Kit includes 2 inch tall powder coated semi-gloss black cast steel blocks and heavy-duty zinc plated U-bolts

Tire Fitment
  • Allows for up to a 37x12.50 Tire on a 9-Inch Wide Wheel with 5.5-inch backspacing
Shipping Specs
More Information
Weight 355.000000
Country of Origin US
Compatibility
Customer Reviews
Write Your Own Review
You're reviewing:Cognito 4-Inch Performance Lift Kit with Fox PSRR 2.0 Shocks for 20-25 Silverado/Sierra 2500/3500 2WD/4WD
Your Rating
  1. Posted on

    Price
    100%
    Quality
    100%
    Value
    100%
    2024 gmc 3500hd Denali 4 inch performance kit
    Great quality always excellent instructions. Rides and drives better than stock.
    Every Cognito lift I have installed and owned has been the best quality and ride quality of any lifts.
  2. Posted on

    Price
    100%
    Quality
    100%
    Value
    100%
    2022 AT4 HD | 4" lift
    Excellent kit, directions are spot on. Can definitely tell getting into the truck. looks great and very clean kit.
  3. Posted on

    Price
    100%
    Quality
    100%
    Value
    100%
    4" Kit | 2024 AT4 HD
    Fit perfectly! Swapped the front differential for a 2019, with 2019 axles, to get a 4.10:1 gear up front to match the new rear. Furthermore, running a 1" diff spacer, setting it to 5" and maintaining the 3" of droop travel (Justin). What a well thought out kit. Thank you, Cognito, once again! Clayton D Cooke | Fort Worth, Texas
  4. Posted on

    Price
    100%
    Quality
    100%
    Value
    100%
    4" lift kit
    Great kit, ride quality great, the lift quality is great. If not a professional read, all instructions and follow them.
Product Questions
Question
Will this work on 23' gmc Sierra 4wd Dually
Answer
Hi Brian, Absolutely, this kit gets installed on those trucks regularly.
Question
Will this fit a 2024 and can I get the fox 2.5 with the kit instead of 2.0?
Answer
Hi Elvis, We have dealers that have installed this kit on 2024's without issue. We are doing an install next week to confirm. To get the 2.5's, you would need to switch the Elite kit with Elka 2.5's. Part number 210-P1129.
Question
Does this kit work with factory 18 + 20" wheels??
Answer
Hi Matt, Yes, but you will need to be mindful of the tire you choose. The 18" and 20" wheels don't have the same backspacing . You may need to run a small wheel spacer to avoid the tire contacting the control arm.
Question
Instead of the Fox 2.0 shocks, Is there an option to get the King 2.5 shocks?
Answer
Hi Tim, We currently don't have plans to add the King 2.5 offering to this kit. We do offer 210-P1151 which has 2.5" Elka shocks which are a great alternative to the Kings.
Question
Will this kit work with the factory overloads
Answer
Hi Sam, Yes, you can still use the factory overloads with this kit.
Question
Does this lift degrade towing performance? 2023 GMC Sierra 2500
Answer
Hi Ricky, The lift kit will not impact towing performance. The increase in tire/ wheel size will have the biggest impact on driving and towing performance.
Question
Quick question. Is there a minor track width up front on the 4"?
Answer
Hi Clayton, Actually, there is no trackwidth increase on our 4" kits for the 2020+ HDs.
