We have bundled everything you need in a leveling kit for your Silverado/Sierra 1500 2WD/4WD with high quality Cognito components. There is no guesswork.

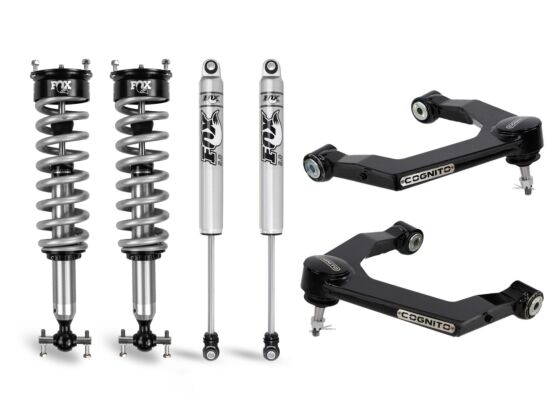

Cognito components are engineered, manufactured and assembled in the USA. The Cognito 3 Inch Performance Ball Joint Leveling Kit includes the Cognito Ball Joint SM Series Upper Control Arm Kit, Fox Performance Series Coilover front shocks and Fox Performance Series Monotube rear shocks- all with hardware included.

The Cognito Ball Joint SM Series Upper Control Arms add style, function and performance to your vehicle by improving the allowable droop travel for a better ride quality. The control arm kit features boxed sheet metal arms that are CNC robot welded and powder coated semi-gloss black.

Press in ball joints are pre-installed and retained with black anodized, Cognito branded laser etched caps. New crush sleeves and polyurethane bushings are included. The Cognito Ball Joint SM Series Upper Control Arms provide ample droop travel that is required for good ride quality and all suspension components to last and work properly.

The Fox 2.0 Performance Series shocks contain the latest in shock technology to transform the performance of your truck. The Fox 2.0 Performance Series Coilover IFP front shocks are rust resistant and have a metal impact extruded aluminum body to increase cooling capacity.

The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. They're easy to install and provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Tire Fitment

Allows for up to a 34 x 12-Inch Tire on a 9-inch Wide Wheel with 5.75-inch Backspacing

Shipping Specs

More Information
Lead Time	Quick Ship
Weight	82.000000

Compatibility

Customer Reviews

Product Questions

Question

How does this kit (Cognito 3-Inch Performance Leveling Kit With Fox PS Coilover 2.0 IFP Shocks for 19-22 Silverado/Sierra 1500 2WD/4WD) give you 3” of lift, if the FOX IFP shocks are only good for 2” on the fox website ?

Answer

Hi Mickey, We install a taller billet hat onto the coil over to increase it's length over what Fox specifies.

Mickey

Question

Will my cv axle angles be compromised/at risk if I were to install this kit? Thanks!

Answer

Hi Toby, You will not have any issue with your CV axle angles or wear from running any of our kits. Part of our engineering process is to insure we do not have those kinds of issues.

Toby

Question

Other leveling kits warn not to use 4WD Hi Auto after installing their kits. Does this warning apply to your 3 inch leveling kit on my 2022 Silverado, Crew cab, RST, 5.3 application? Thanks

Answer

Hi Greg, Installation of this kit will not impact your ability to use 4WD in any way. Most kits that have such a warning are running too much CV axle angle which impacts your ability to use 4WD safely.

greg cox
